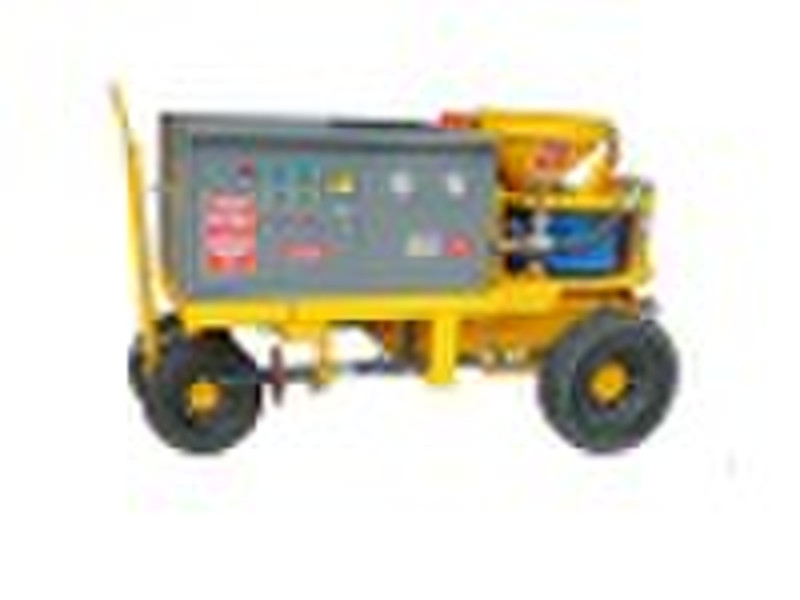

2010 hot-selling BSZ3000 Shotcrete machine

BSZ3000 is a universal concrete spraying machine for the processing of wet or dry mix . The machine is suitable either for manual spraying or by means of a robotic arm. BSZ3000 is developed for the application of shotcrete in tunnel building,mines and slopes.This machine has been designed especially for fibre spraying .And the dosing unit is combined with this machine . Basic: electric drive can be combined with tyre chassis. Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel Specification (with Electric motor drive): Rated Output 5m3 /h Max. Horizontal Conveying Distance 35m Max. Aggregate Size 15mm Concrete Slump 8-15cm Conveying Hose Inner Diameter 51/64mm Operating air Pressure 0.3-0.6MPa (43-86PSI) Air Consumption 10 12m3/min(357-430CFM) Main Motor Power 7.5kW(10hp) Dosing Pump: BRJ15 Dosing Pump Rated Pressure 0.6MPa(86PSI) Dosing Pump Output 17.5-88L/h Voltage 220V,380V, 440V,660V, 50Hz/60Hz Material Charging Height 1.17m Rotor Speed 11r/min Overall Dimension(L×W×H) 2.05×0.95×1.18m Net Weight 1200kg
