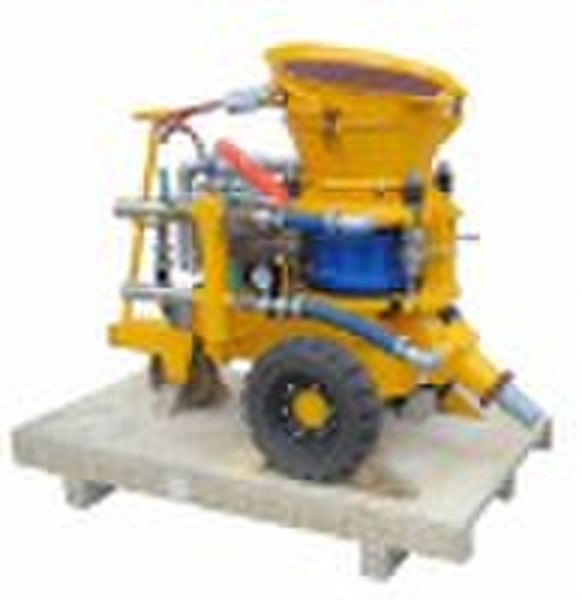

2010 hot-selling GZ-5 shotcrete machine

With our customers driving, our machine is designed and manufactured by us based on our original GZ-5 machine. Besides holing all advantages of GZ-5 gunite machine, GZ-5A holds the additional new features: In worksites, only one compressed air hose is connected to the inlet of GZ-5A machine, the machine can work, without electric power supply. The output of machine can be Variable Speed from 2.5-5 cubic meter per hour(or from 3.3-6.6 cubic yards per hour) The GZ-5A can work in the explosion protection worksites. Specification: Output Capacity2.5-5.5m3 /hMax. Horizontal Conveying Distance200mSuitable Mix Ratio(Cement/Sand)≤1:3 5Max. Aggregate SizeΦ15 mmConveying Hose Inner DiameterΦ51 mmConveying Pressure0.2-0.4MPaAir Consumption for conveying material7 8m3/minAir Motor Air Pressure0.5MPaMaterial Charging Height1.1mRotor Speed10rpmAir Motor TypeTMH6AAir Motor Air Consumption7.5m3/minOverall Dimension(length×width×height)1.35×0.75×1.2mNet Weight720kg
