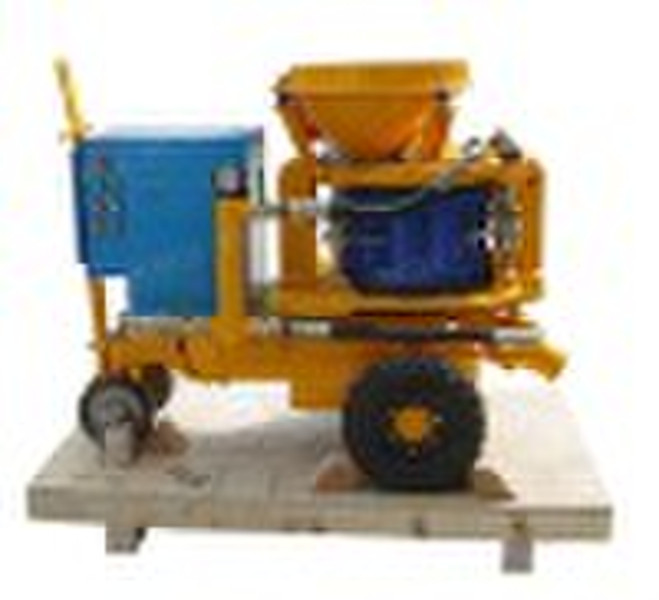

2011 hot-selling GZ-3A Dry-mix shotcrete machine

Air Motor Driven Output Capacity 1.5-3m3 /h Max. Horizontal Conveying Distance 200m Suitable Mix Ratio(Cement/Sand) ≤1:3 5 Max. Aggregate SizeΦ10 mm Conveying Hose Inner DiameterΦ42/Φ50mm Conveying Pressure0.2-0.4MPa(29-58PSI) Air Consumption for conveying material 5 6m3/min(180-215CFM) Air Motor Air Pressure 0.5MPa(71PSI) Material Charging Height 0.9m Rotor Speed 14r/min Air Motor TypeTMH3.2 Air Motor Air Consumption 4.8m3/min(171CFM) Overall Dimension(length×width×height) 1.13×0.54×1.02m Net Weight 430kg(947lbs)
